Couplings
Flexible Jaw Couplings
Simple construction, quick installation with no special tools required. Absorbs shock loads and dampens vibration.
Salient Features
- Simple construction - quick, easy installation - no special tools required.
- Flexible insert caters to incidental angular, parallel and axial misalignment.
- Absorbs shock loads and dampens small amplitude vibration.
- Insert design presets correct distance between hubs, using raised pads on each leg of the insert.
- Available in a range of stock bore sizes or with Finished Bore & Keyway.
- Unaffected by moisture, grease and oils - including non-aromatic and non-ketone solvents, and temperatures from -40°C to +100°C.
- Spacer coupling with spacers to suit different distances between shaft ends (DBSE).
Types & Variants
Standard Coupling
- Available Sizes:
- 7
- Torque:
- 20 to 262 Nm
- Power:
- 0.21 to 2.75 kW per 100 rpm
- Bore Dia:
- 15 to 60 mm
External Spider Coupling
- Available Sizes:
- 6
- Torque:
- 22 to 267 Nm
- Power:
- 0.23 to 2.80 kW per 100 rpm
- Bore Dia:
- 15 to 60 mm
Cushion Coupling
- Available Sizes:
- 5
- Torque:
- 330 to 2139 Nm
- Power:
- 3.45 to 22.40 kW per 100 rpm
- Bore Dia:
- 25 to 90 mm
Standard Spacer Coupling
- Available Sizes:
- 7
- Torque:
- 20 to 262 Nm
- Power:
- 0.21 to 2.75 kW per 100 rpm
- Bore Dia:
- 15 to 60 mm
External Spider Aluminium Spacer Coupling
- Available Sizes:
- 6
- Torque:
- 22 to 267 Nm
- Power:
- 0.23 to 2.80 kW per 100 rpm
- Bore Dia:
- 15 to 60 mm
Cushion Spacer Coupling
- Available Sizes:
- 5
- Torque:
- 330 to 2139 Nm
- Power:
- 3.45 to 22.40 kW per 100 rpm
- Bore Dia:
- 25 to 90 mm
Custom Options
- Finished bore & keyway. Also available in a range of stock bore sizes.
- Spacer coupling to suit different distances between shaft ends (DBSE).
See our custom manufacturing page for options across our full product range.
Documents & Downloads
Related Products
Couplings

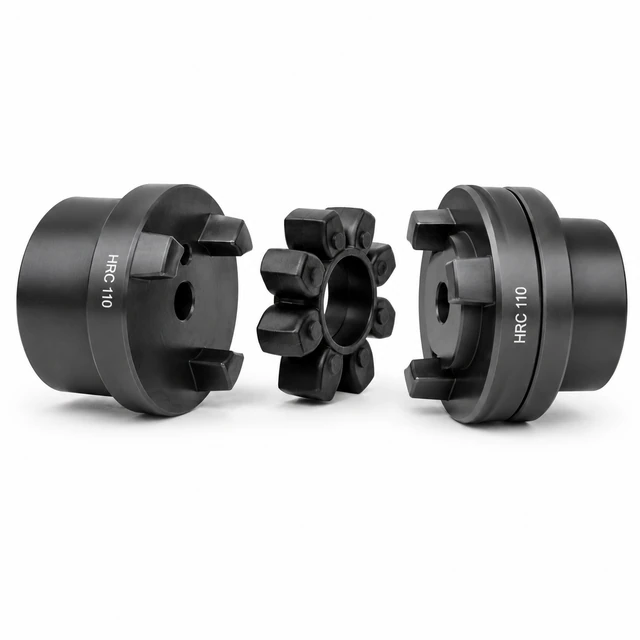

LHRC Couplings
