Pulleys

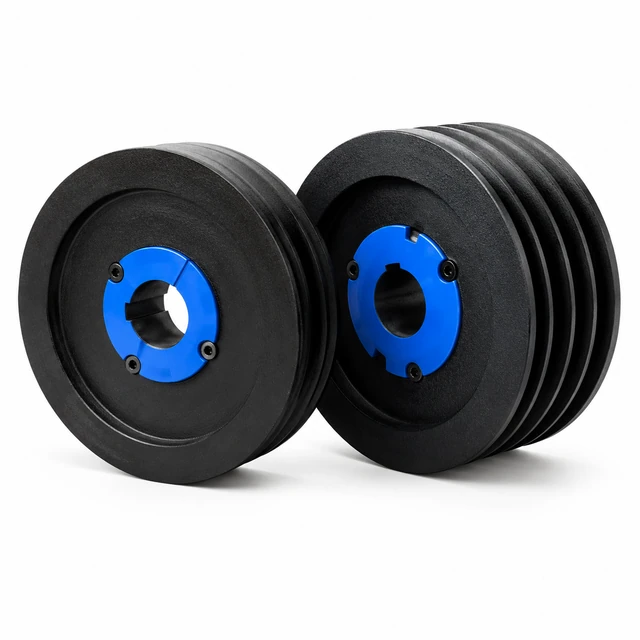

V-Pulleys
Standard range of metric pulleys to cover drives up to 250 kW, featuring dual duty grooves.
Salient Features
- Standard range of metric pulleys to cover drives up to 250 kW approx.
- Dual duty grooves conforming to ISO Specifications to perfectly match classical 'V' and SpaceSaver Wedge section belts.
- Cater to Speed Ratios up to 1:7.
- Easyfit (Taper) Bushes used for quick fitment and removal.
- Made of high quality close-grained Cast Iron.
- All Arm & Web type pulleys supplied with Static balancing (Dynamic Balancing on request).
Technical Specifications
| Section | Pitch Circle Diameter (mm) |
|---|---|
| SPZ 1 to 6 Grooves | 67, 71, 75, 80, 85, 90, 95, 100, 112, 125, 140, 160, 180, 200, 250, 315, 400, 500, 630, 800 |
| A/SPA 2 to 6 Grooves | 80, 85, 90, 95, 100, 106, 112, 118, 125, 132, 140, 150, 160, 180, 200, 250, 315, 400, 500, 630 |
| B/SPB 2 to 10 Grooves | 125, 132, 140, 150, 160, 170, 180, 190, 200, 212, 224, 236, 250, 280, 315, 355, 400, 500, 630, 800, 1000 |
| C/SPC 4 to 10 Grooves | 200, 212, 224, 236, 250, 265, 280, 300, 315, 335, 355, 375, 400, 425, 450, 475, 500, 530, 560, 630, 800, 1000, 1250 |
Custom Options
- Through-bored pulleys without Easyfit (taper) bushes.
- Pulleys with D and E section grooves.
- Pulleys with more than 8 grooves of SPC section, solid or split, for higher-power drives such as crushers and rolling mills.
- Split construction.
- Pulleys larger in diameter than the standard Easyfit (taper) bush pulley range.
- Alternative material such as cast steel.
- Flywheel pulleys.
See our custom manufacturing page for options across our full product range.
Custom built drives available including through bored pulleys, 'D' and 'E' section grooves, Split constructions, Cast Steel options, and complete Jack-Shaft Drives.
