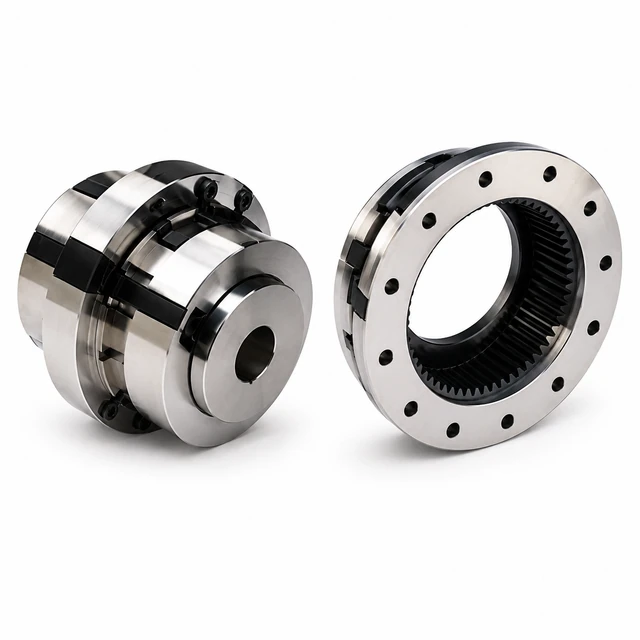

Gear Couplings
Curved tooth flexible gear couplings known for mechanical flexibility and high power carrying capacity.
- Power
- 11.5 to 12,700 kW at 100 rpm
- Torque
- 1100 to 12,00,000 Nm
- Bore Diameter
- 20 to 600 mm
Salient Features
- Distinguished by mechanical flexibility and compensation of angular, parallel and axial misalignments.
- High power carrying capacity.
- Designed for extensive applications in metal rolling mills, paper machinery, cranes, cement plants, etc.
- Consist of two hubs with crowned external teeth and two outer sleeves with internal spur teeth.
- Manufactured from carbon steel and hardened to required degree.
- Suitable for grease/oil lubrication with Seal Carrier for easy maintenance.
Custom Options
- Half rigid, half flexible coupling.
- Torsion shaft gear coupling.
- Spacer type.
- Shear pin protection.
See our custom manufacturing page for options across our full product range.
19 sizes in Standard version. Variants include Half Rigid Half Flexible, Torsion shaft, Spacer Type, and Shear Pin Protection.
Applications
- Metal rolling mills
- Paper machinery
- Cranes
- Dredgers
- Rubber & plastic industries
- Cement plants
- Conveyors & elevators
- Compressors
- Fans & blowers
- Screens
- Other general industries
